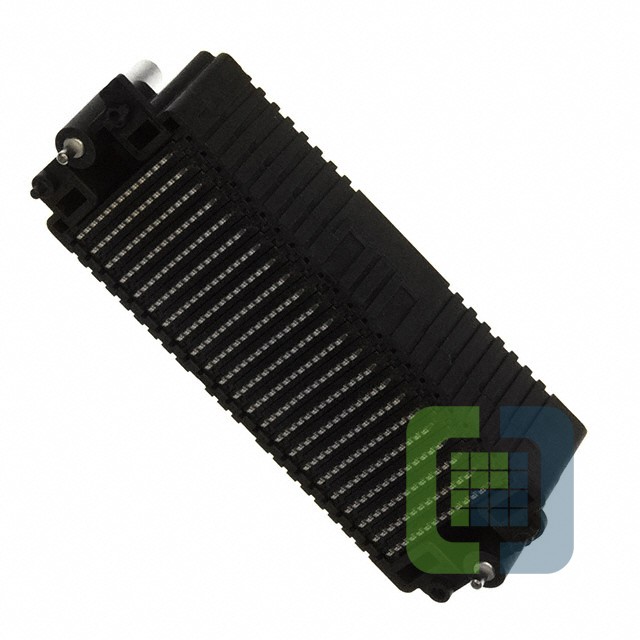

HDAM-23-12.0-S-13-1
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 299P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet HDAM-23-12.0-S-13-1 Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$47.03
Quote It
Technical Details
- Series:HD Mezz™ HDAM
- Package:Tray
- Part Status:Active
- Connector Type:High Density Array, Male
- Number of Positions:299
- Pitch:0.047" (1.20mm)
- Number of Rows:13
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:20mm, 30mm
- Height Above Board:0.683" (17.35mm)
