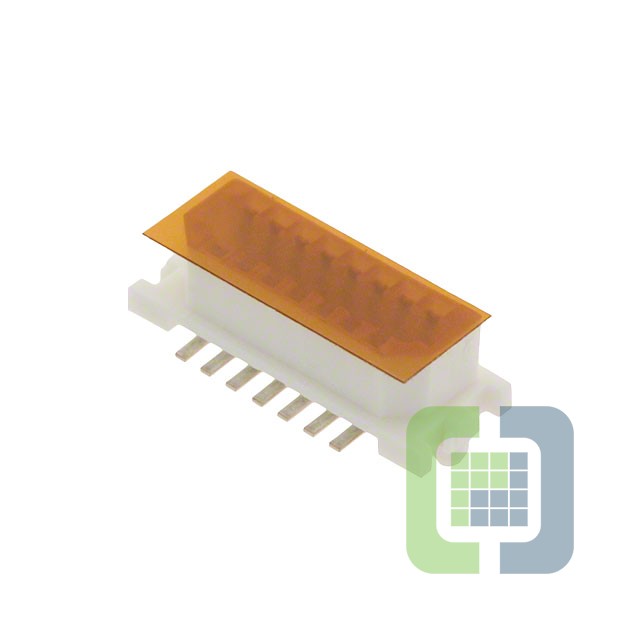

DF9A-15P-1V(20)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 15POS SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet DF9A-15P-1V(20) Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DF9
- Package:Tube
- Part Status:Obsolete
- Connector Type:Header, Center Strip Contacts
- Number of Positions:15
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Tin
- Contact Finish Thickness:-
- Mated Stacking Heights:4.3mm
- Height Above Board:0.130" (3.30mm)
