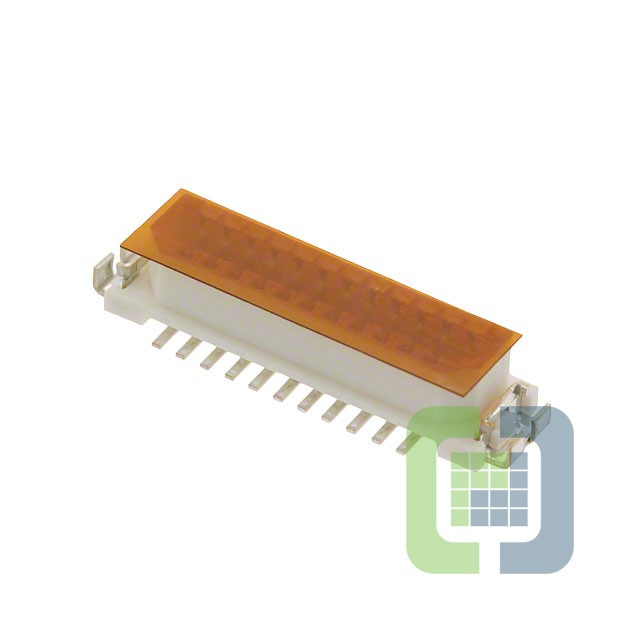

DF9-23S-1V(54)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 23POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet DF9-23S-1V(54) Datasheet
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DF9
- Package:Tube
- Part Status:Obsolete
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:23
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:4.3mm
- Height Above Board:0.130" (3.30mm)
