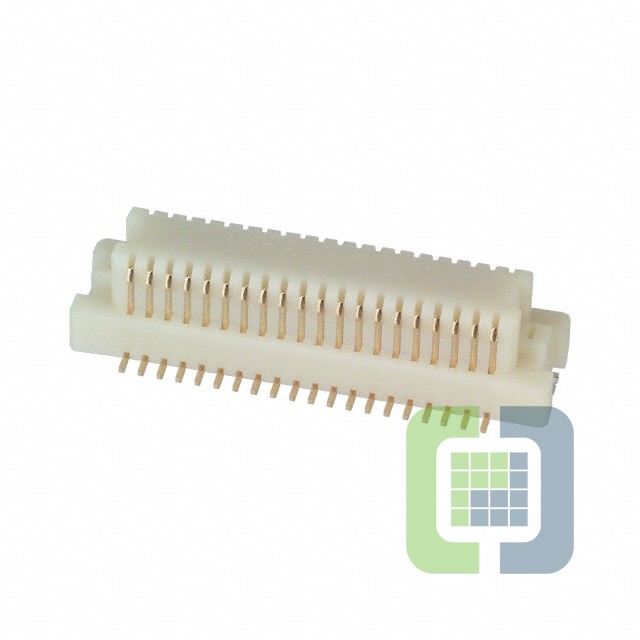

DF15B(0.8)-40DS-0.65V(56)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet DF15B(0.8)-40DS-0.65V(56) Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DF15
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:40
- Pitch:0.026" (0.65mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:4mm, 5mm, 7mm
- Height Above Board:0.118" (3.00mm)
