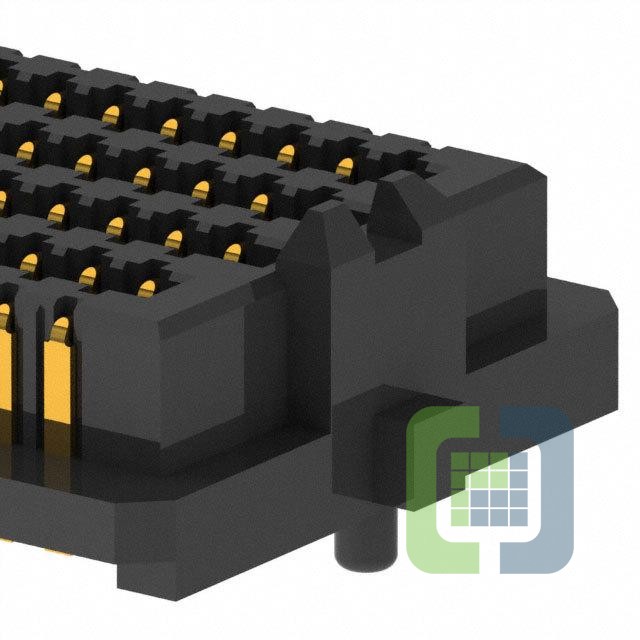

SEAM-50-03.5-S-10-2-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 500P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM-50-03.5-S-10-2-A Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tray
- Part Status:Obsolete
- Connector Type:High Density Array, Male
- Number of Positions:500
- Pitch:0.050" (1.27mm)
- Number of Rows:10
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:8.5mm, 9.5mm, 10mm, 11mm, 11.5mm
- Height Above Board:0.240" (6.10mm)
