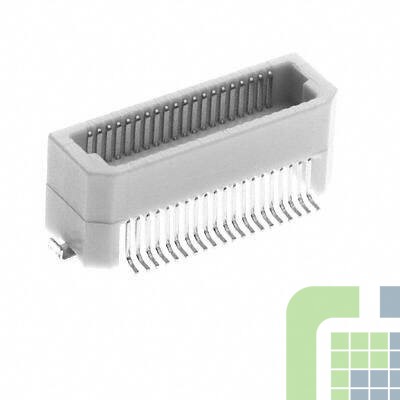

PK5-120S-CLT-3-GGF
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet PK5-120S-CLT-3-GGF Datasheet
-
ECAD Model
- Share
In Stock: 102
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Pak 5, PK5
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:2.00µin (0.051µm)
- Mated Stacking Heights:5mm, 7mm
- Height Above Board:0.159" (4.04mm)
