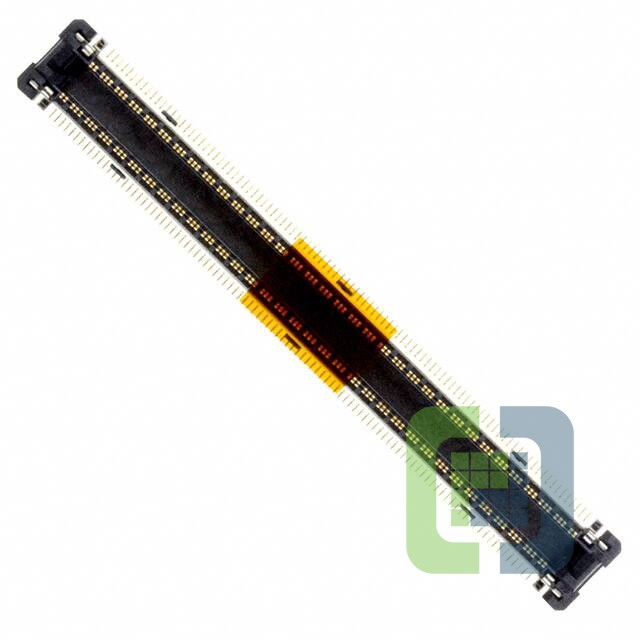

WB3M200VD1T
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 200POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WB3M200VD1T Datasheet
-
ECAD Model
- Share
In Stock: 132
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:WB3
- Package:Tray
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:200
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.185" (4.70mm)
