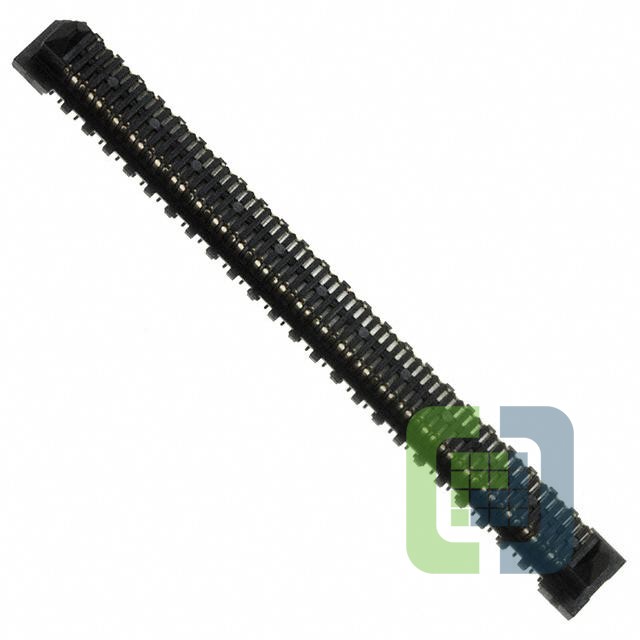

ERM8-060-02.0-S-DV
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERM8-060-02.0-S-DV Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Edge Rate™ ERM8
- Package:Tray
- Part Status:Obsolete
- Connector Type:Header, Center Strip Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:7mm, 9mm, 12mm
- Height Above Board:0.235" (5.97mm)
