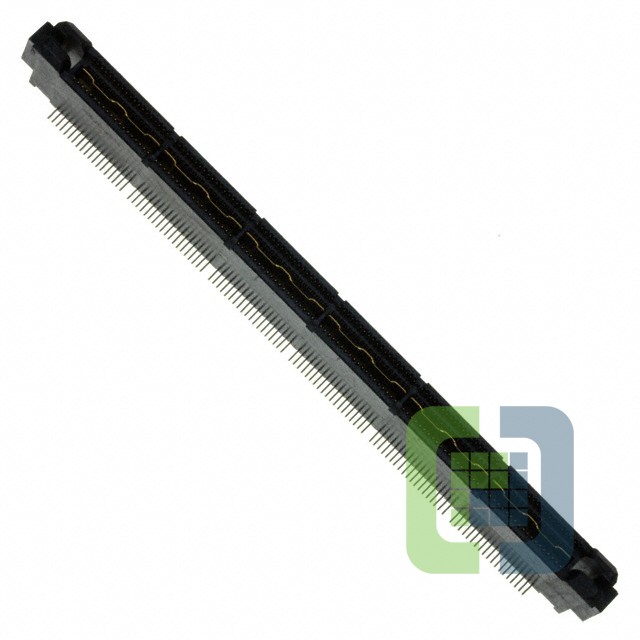

1-5767003-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 228POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1-5767003-3 Datasheet
-
ECAD Model
- Share
In Stock: 102
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:228
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:11mm, 20mm
- Height Above Board:0.419" (10.64mm)
