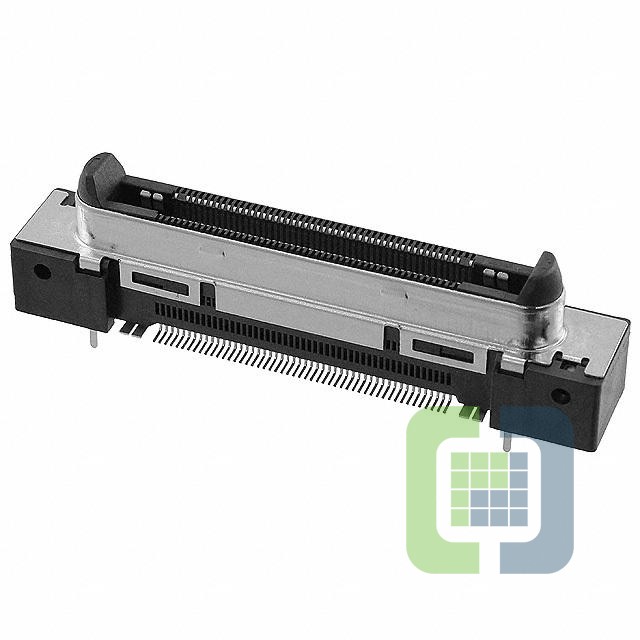

WD-100P4V-VF120-N-PE-T45
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 104POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WD-100P4V-VF120-N-PE-T45 Datasheet
-
ECAD Model
- Share
In Stock: 152
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:WD
- Package:Tray
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:104
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Mounting Flange
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.531" (13.49mm)
