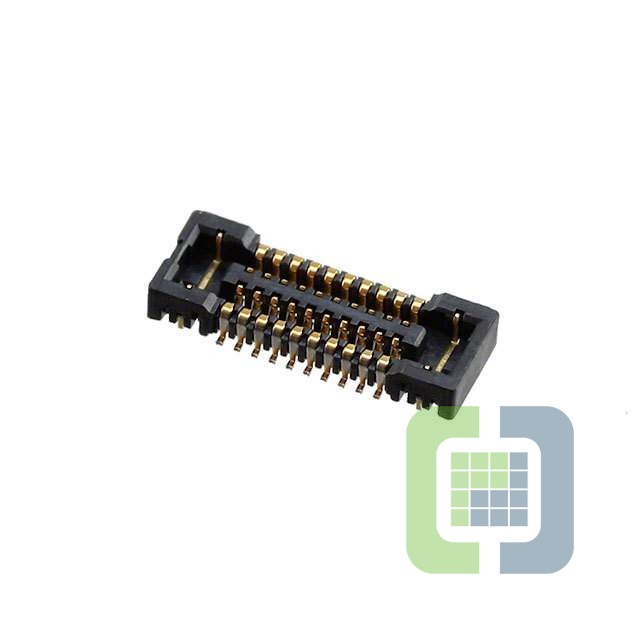

5024262010
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5024262010 Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SlimStack 502426
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:20
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:4.00µin (0.100µm)
- Mated Stacking Heights:1mm
- Height Above Board:0.039" (1.00mm)
