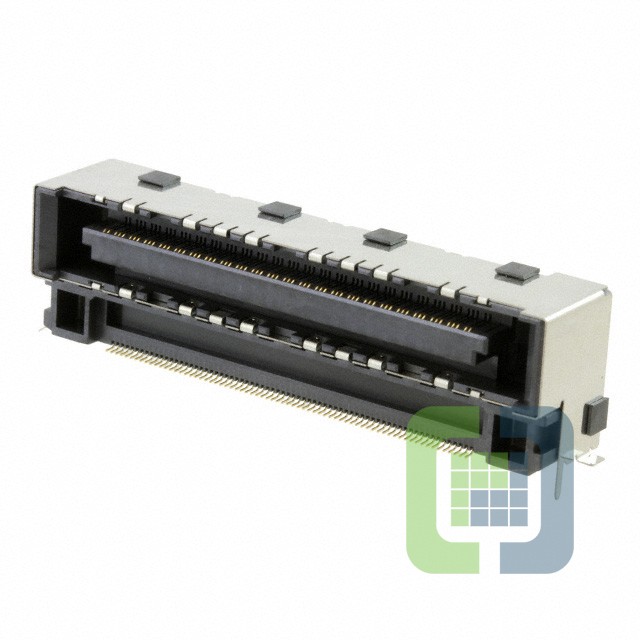

WB4S140HA1
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 140POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WB4S140HA1 Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:WB4
- Package:Tray
- Part Status:Obsolete
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:140
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.541" (13.75mm)
