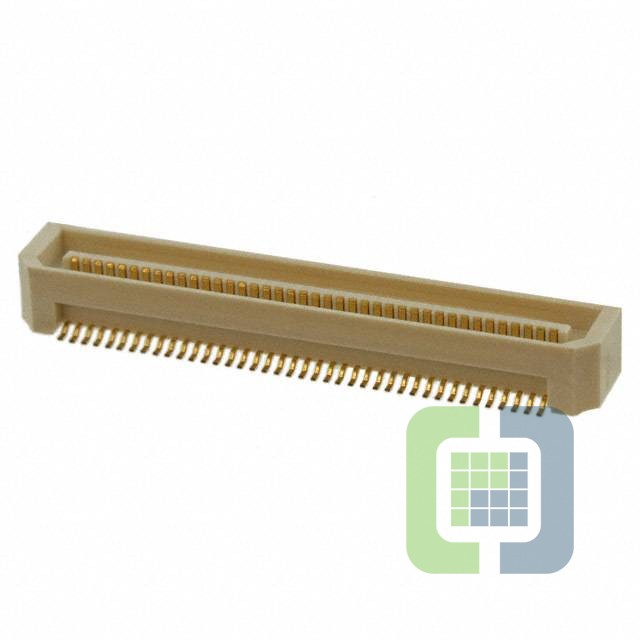

AXN480530S
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXN480530S Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:P8
- Package:Tube
- Part Status:Obsolete
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:5mm, 5.5mm, 8mm
- Height Above Board:0.186" (4.72mm)
