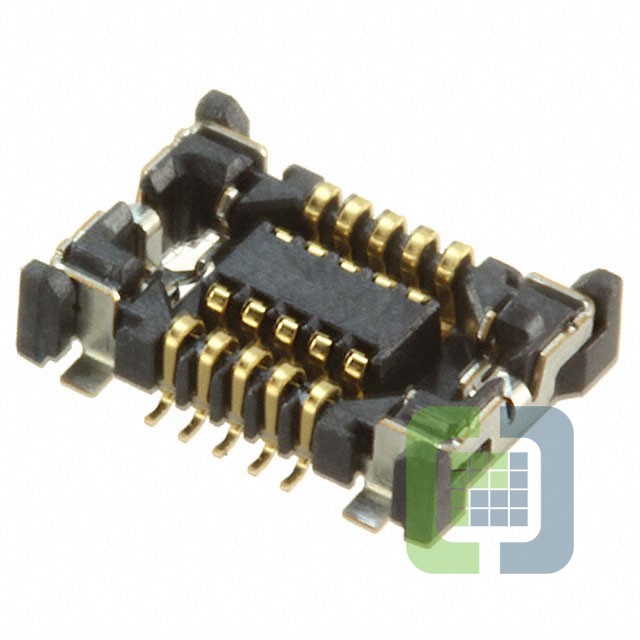

AA01A-S010VAT-0001
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 10POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AA01A-S010VAT-0001 Datasheet
-
ECAD Model
- Share
In Stock: 117
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AA01A
- Package:-
- Part Status:Obsolete
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:10
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:1.5mm
- Height Above Board:0.058" (1.48mm)
