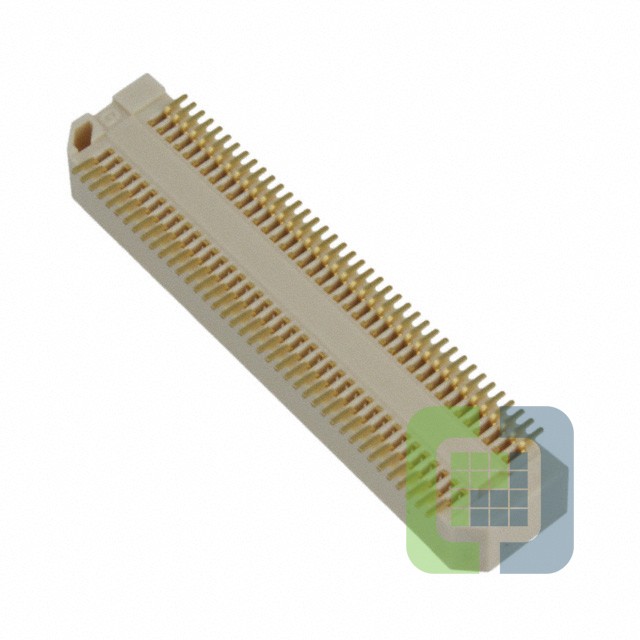

P05N-080ST-B-G
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet P05N-080ST-B-G Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:P05N
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:4mm, 5mm, 6mm
- Height Above Board:0.120" (3.05mm)
