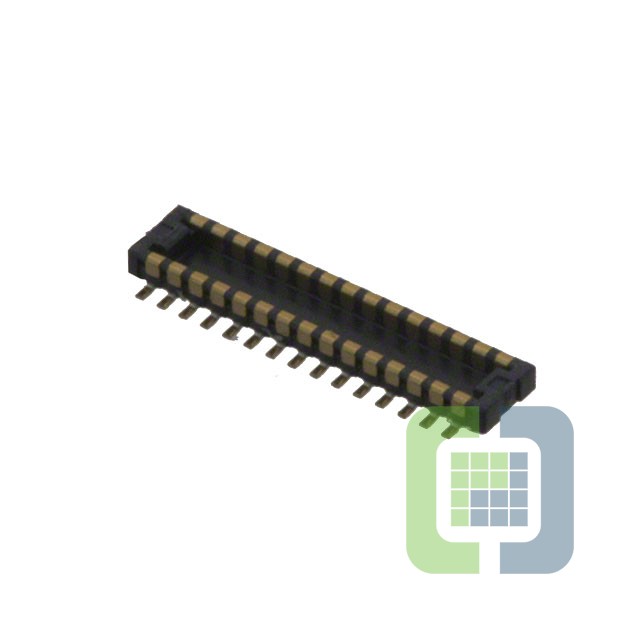

WP7-P026VA1-R6000
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 26POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WP7-P026VA1-R6000 Datasheet
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:WP7
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:26
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:0.7mm
- Height Above Board:0.020" (0.50mm)
