0536271675
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

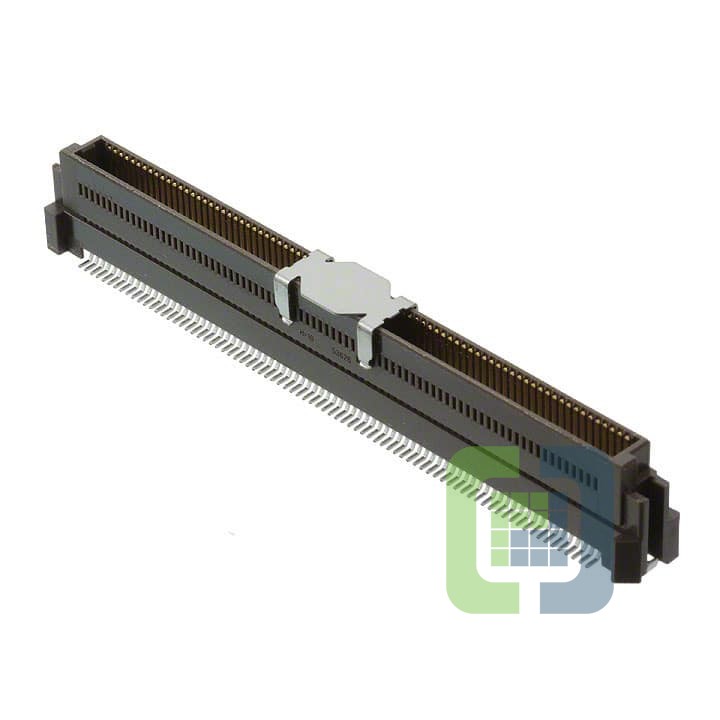

- DescriptionCONN PLUG 160POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0536271675 Datasheet
-
ECAD Model
- Share
In Stock: 148
Can ship immediately
Pricing:
- 1$11.39
- 10$10.35671
- 25$10.09786
- 50$9.32113
- 100$8.80325
- 250$8.02645
- 500$7.50862
Quote It
Technical Details
- Series:SlimStack 53627
- Package:Tube
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:160
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 16mm
- Height Above Board:0.354" (9.00mm)
