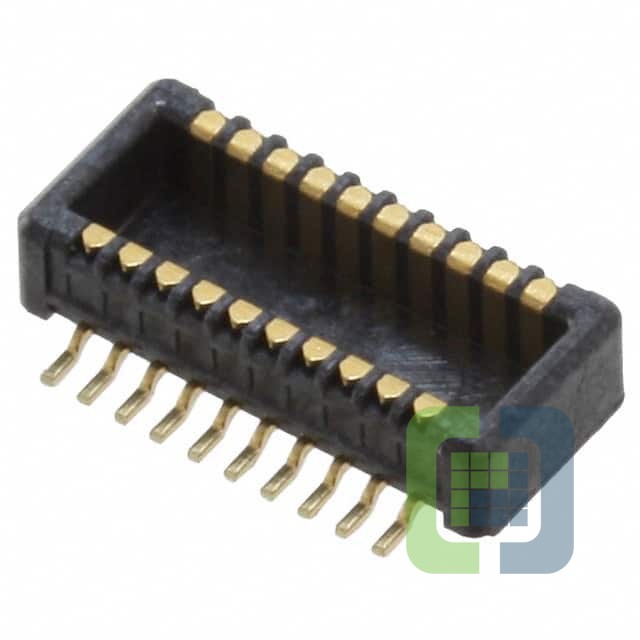

5003340200
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5003340200 Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$0.56275
- 3,000$0.56275
- 6,000$0.54334
- 9,000$0.51617
- 15,000$0.50453
Quote It
Technical Details
- Series:SlimStack 500334
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:2.5mm
- Height Above Board:0.058" (1.48mm)
