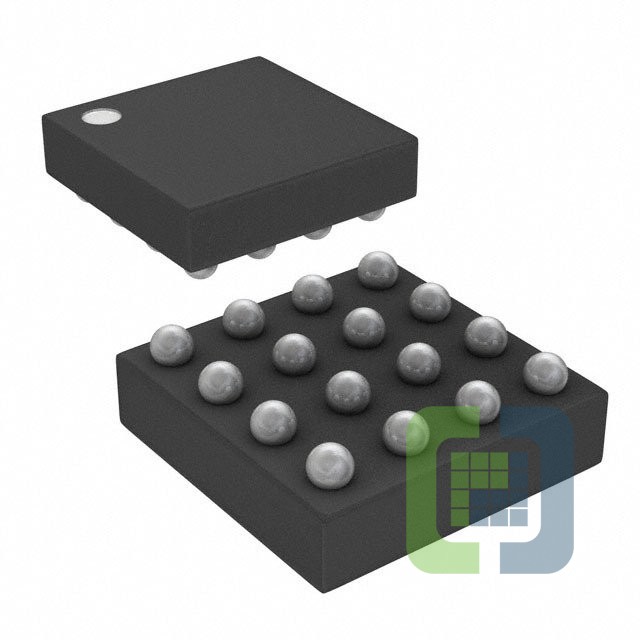

TPS62770YFPR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK BST PROG DL 16DSBGA
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 9,114
Can ship immediately
Pricing:
- 1$2.06
- 3,000$0.891
- 6,000$0.858
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Up, Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost
- Output Type:Programmable
- Number of Outputs:2
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1V, 4.5V (12V)
- Voltage - Output (Max):3V, 15V
- Current - Output:300mA, 30mA, 100mA, 200mA
- Frequency - Switching:1.05MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-XFBGA, DSBGA
- Supplier Device Package:16-DSBGA
