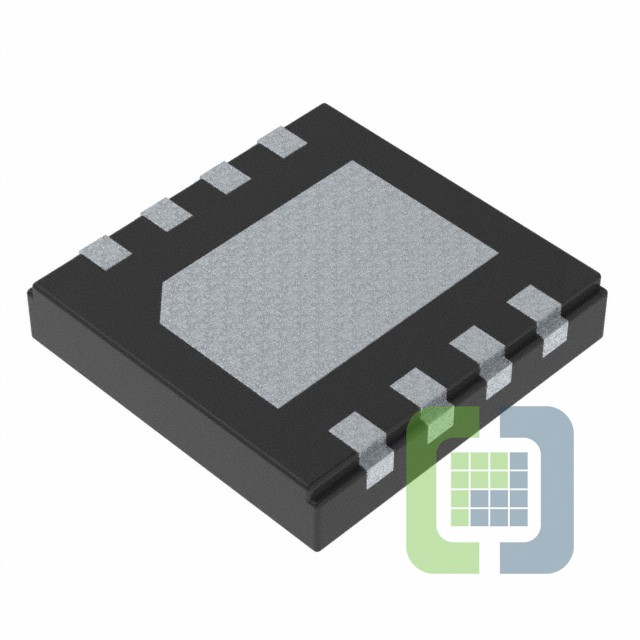

LM5009ASD/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 150MA 8WSON
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 859
Can ship immediately
Pricing:
- 1$3.03
- 1,000$1.4036
- 2,000$1.3068
- 5,000$1.2584
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):6V
- Voltage - Input (Max):95V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):85V
- Current - Output:150mA
- Frequency - Switching:50kHz ~ 1.1MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-WDFN Exposed Pad
- Supplier Device Package:8-WSON (4x4)
