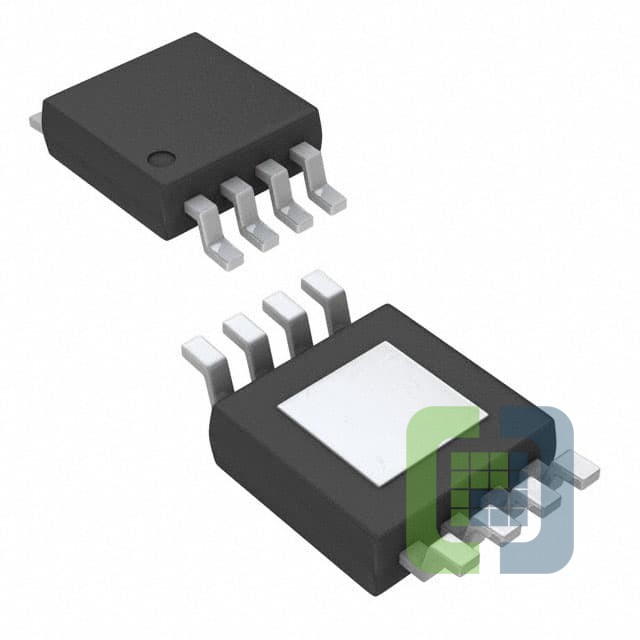

MP2307DN-LF-Z
MPS (Monolithic Power Systems)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 3A 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MP2307DN-LF-Z Datasheet
-
ECAD Model
- Share
In Stock: 2,516
Can ship immediately
Pricing:
- 1$4.02
- 2,500$2.0449
- 5,000$1.9734
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.75V
- Voltage - Input (Max):23V
- Voltage - Output (Min/Fixed):0.925V
- Voltage - Output (Max):20V
- Current - Output:3A
- Frequency - Switching:340kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SOIC-EP
