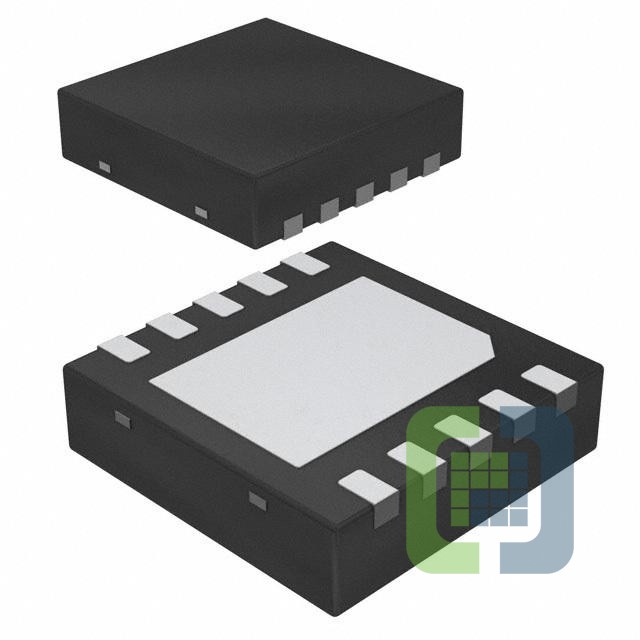

TPS54561DPRR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK SPLIT RAIL ADJ 10WSON
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 9,015
Can ship immediately
Pricing:
- 1$5.69
- 3,000$2.69192
Quote It
Technical Details
- Series:Eco-Mode™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):60V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):59V
- Current - Output:5A
- Frequency - Switching:100kHz ~ 2.5MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-WDFN Exposed Pad
- Supplier Device Package:10-WSON (4x4)
