LM21305SQ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 5A 28WQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 3,072
Can ship immediately
Pricing:
- 1$6.18
- 1,000$3.08
- 2,000$2.926
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3V
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):0.598V
- Voltage - Output (Max):18V
- Current - Output:5A
- Frequency - Switching:300kHz ~ 1.5MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

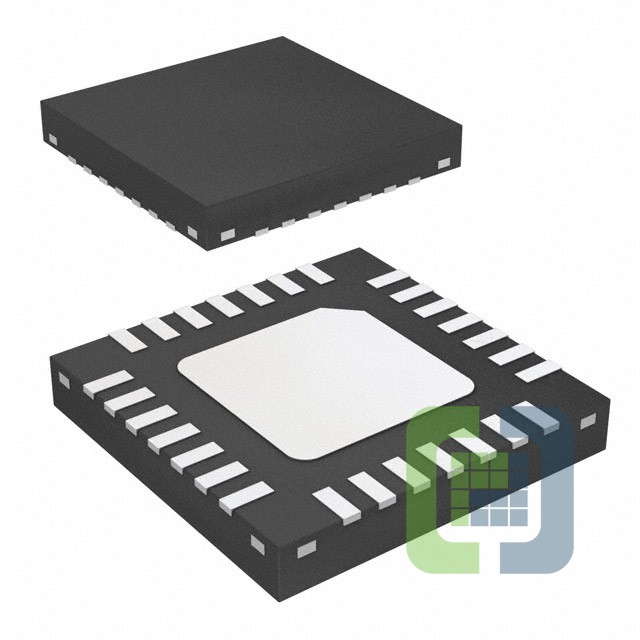

- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-WQFN (5x5)
