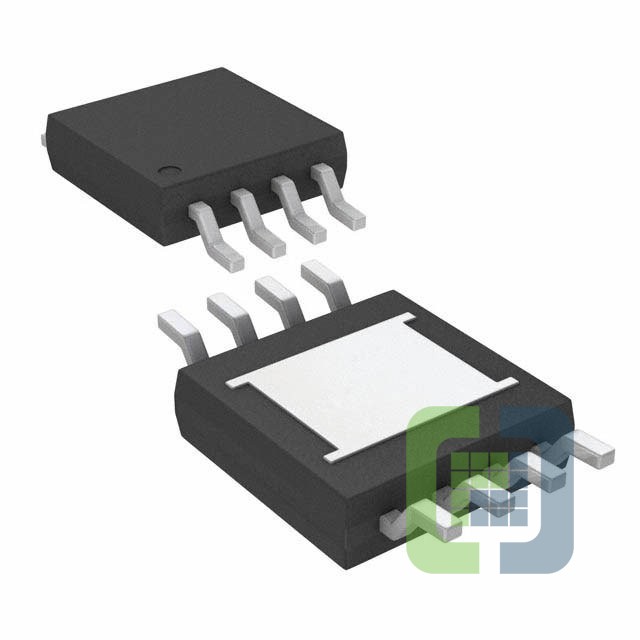

LT3505EMS8E#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 1.2A 8MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3505EMS8E#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 2,632
Can ship immediately
Pricing:
- 1$6.38
- 2,500$3.48568
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.6V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):0.78V
- Voltage - Output (Max):33.84V
- Current - Output:1.2A
- Frequency - Switching:200kHz ~ 3.01MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:8-MSOP-EP
