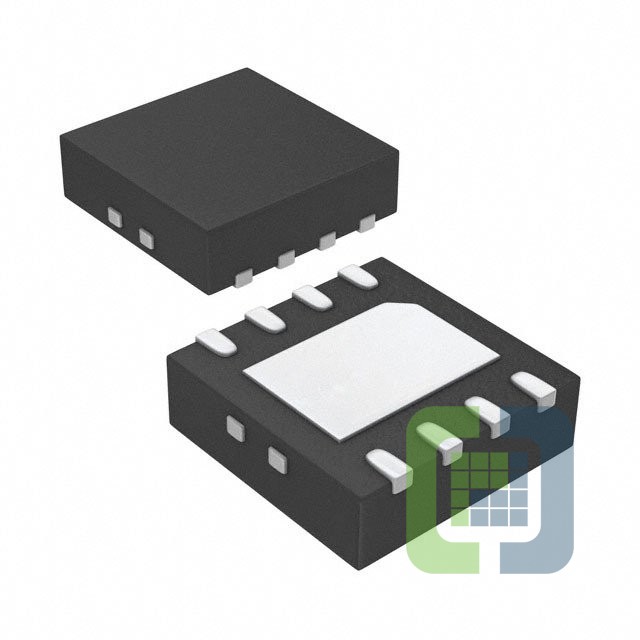

LT3580EDD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG MULTI CONFG ADJ 2A 8DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3580EDD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 1,350
Can ship immediately
Pricing:
- 1$5.34
- 25$3.54223
- 100$2.92875
- 250$2.78231
- 500$2.71954
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive or Negative
- Topology:Boost, Cuk, SEPIC
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):32V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):42V (Switch)
- Current - Output:2A (Switch)
- Frequency - Switching:200kHz ~ 2MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-WFDFN Exposed Pad
- Supplier Device Package:8-DFN (3x3)
