LT3580EMS8E#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG MULTI CONFG ADJ 2A 8MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3580EMS8E#PBF Datasheet
-
ECAD Model
- Share
In Stock: 3,519
Can ship immediately
Pricing:
- 1$5.62
- 25$3.73168
- 100$3.08549
- 250$2.93121
- 500$2.8651
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive or Negative
- Topology:Boost, Cuk, SEPIC
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):32V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):42V (Switch)
- Current - Output:2A (Switch)
- Frequency - Switching:200kHz ~ 2MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

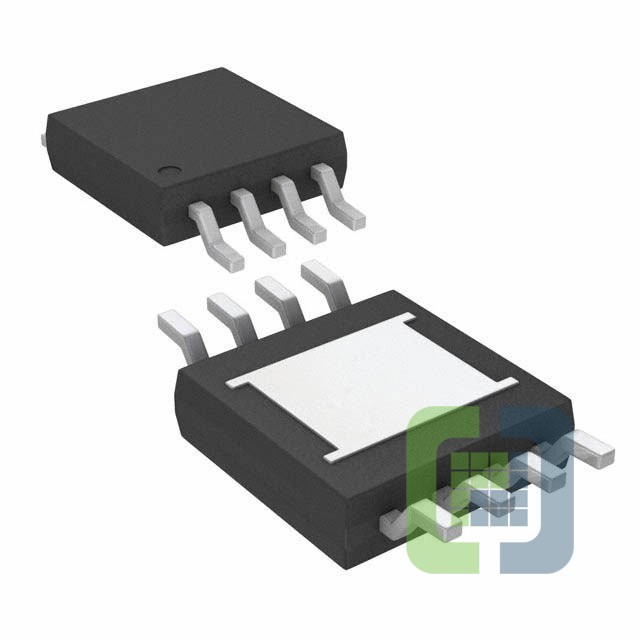

- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package:8-MSOP-EP
