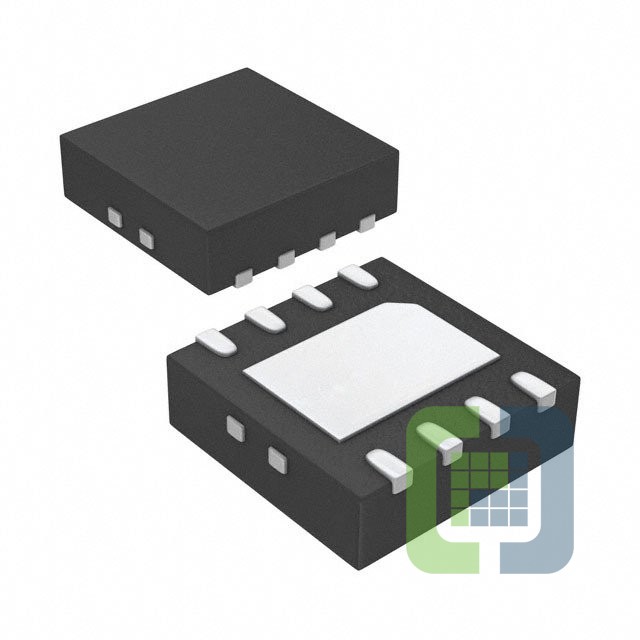

LT3505EDD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 1.2A 8DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3505EDD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 8,479
Can ship immediately
Pricing:
- 1$6.4
- 25$4.25242
- 100$3.51614
- 250$3.34033
- 500$3.265
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.6V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):0.78V
- Voltage - Output (Max):33.84V
- Current - Output:1.2A
- Frequency - Switching:200kHz ~ 3.01MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-WFDFN Exposed Pad
- Supplier Device Package:8-DFN (3x3)
