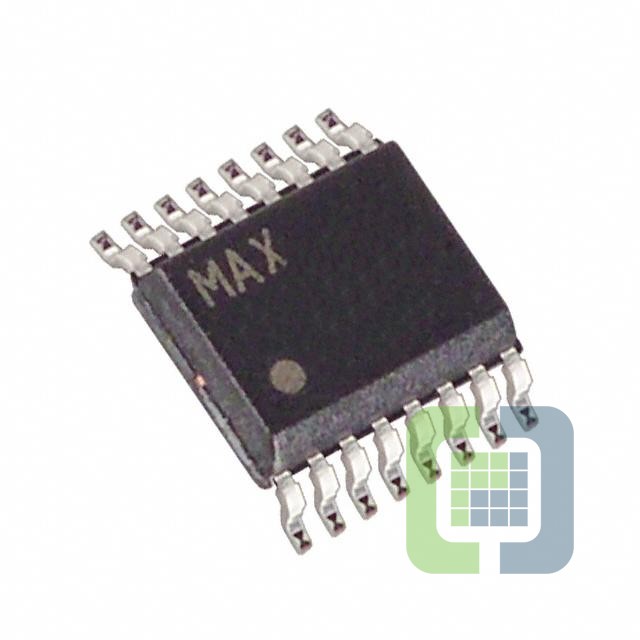

MAX1685EEE+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ/3.3V 1A 16QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 13,853,326
Can ship immediately
Pricing:
- 1$7.1
- 10$6.41353
- 25$6.11491
- 100$5.30946
- 300$5.07083
- 500$4.6234
- 1,000$4.02683
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable (Fixed)
- Number of Outputs:1
- Voltage - Input (Min):2.7V
- Voltage - Input (Max):14V
- Voltage - Output (Min/Fixed):1.25V (3.3V)
- Voltage - Output (Max):14V
- Current - Output:1A
- Frequency - Switching:600kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:16-QSOP
