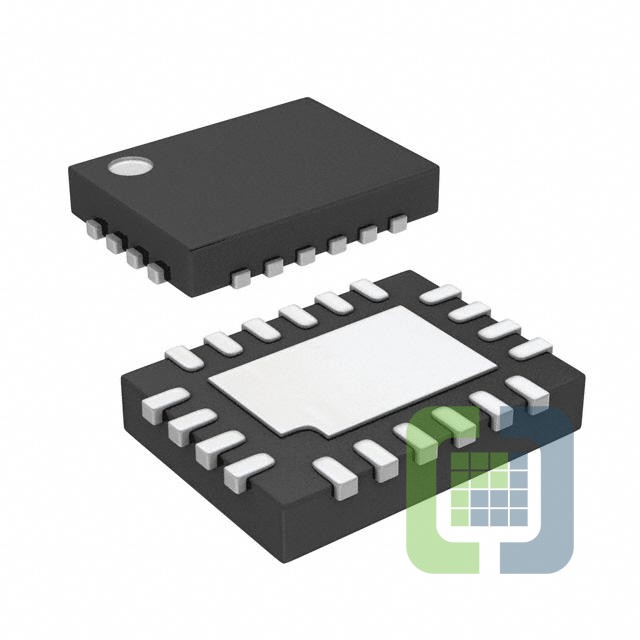

LTC3569EUDC#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ TRPL 20QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3569EUDC#PBF Datasheet
-
ECAD Model
- Share
In Stock: 2,037
Can ship immediately
Pricing:
- 1$7.44
- 25$4.94166
- 100$4.08606
- 250$3.88178
- 500$3.7942
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:3
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.425V
- Voltage - Output (Max):5.5V
- Current - Output:600mA, 1.2A
- Frequency - Switching:2.25MHz, 1MHz ~ 3MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-WFQFN Exposed Pad
- Supplier Device Package:20-QFN (3x4)
