LT3504EUFD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 1A QD 28QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3504EUFD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 1,000
Can ship immediately
Pricing:
- 1$8.4
- 25$5.57863
- 100$4.61257
- 250$4.38197
- 500$4.28311
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:4
- Voltage - Input (Min):3.2V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):40V
- Current - Output:1A
- Frequency - Switching:250kHz ~ 2.1MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

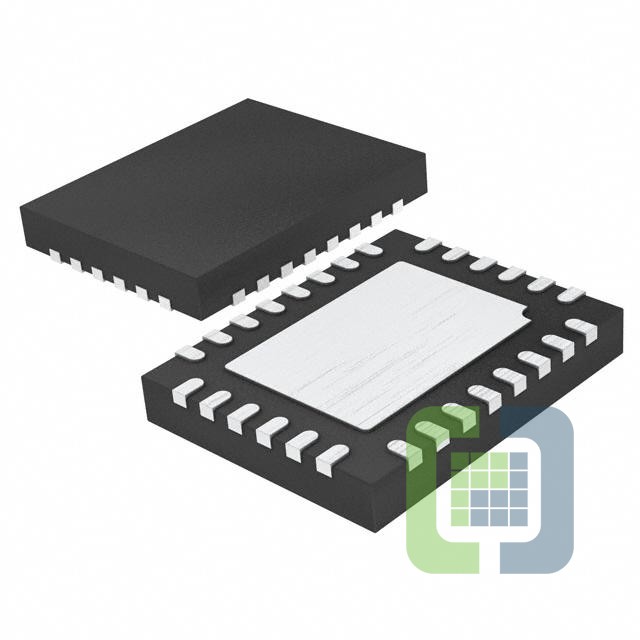

- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-QFN (4x5)
