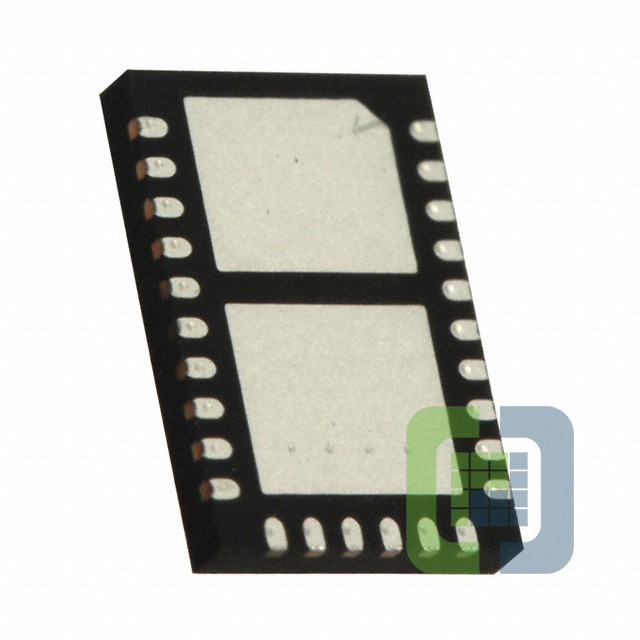

LT3690IUFE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 4A 26QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3690IUFE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 2,543
Can ship immediately
Pricing:
- 1$11.53
- 25$7.65536
- 100$6.32972
- 250$6.01323
- 500$5.8776
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.9V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):20V
- Current - Output:4A
- Frequency - Switching:138kHz ~ 1.5MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:26-WFQFN Exposed Pad
- Supplier Device Package:26-QFN (4x6)
