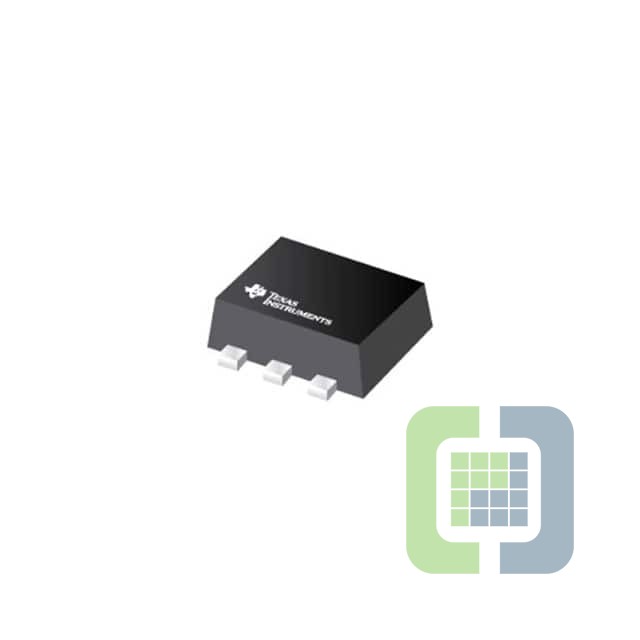

TPS562231DRLR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPOWER MANAGEMENT
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 4,281
Can ship immediately
Pricing:
- 1$0.63
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):17V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):7V
- Current - Output:2A
- Frequency - Switching:850kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SOT-563, SOT-666
- Supplier Device Package:SOT-563
