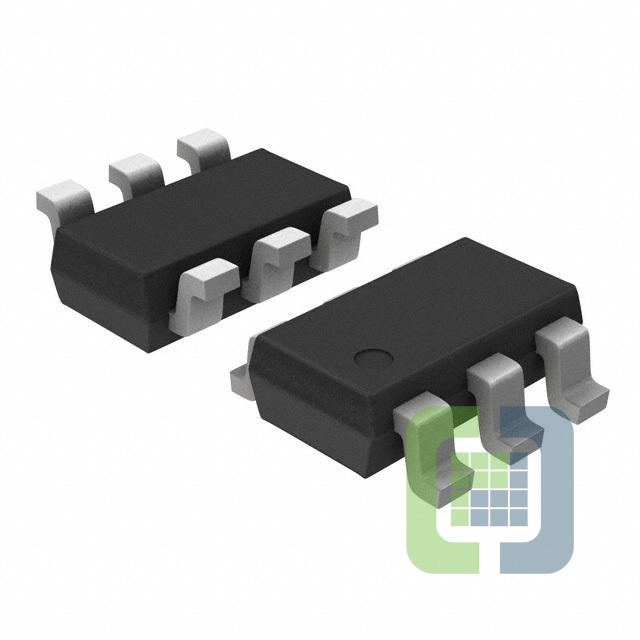

TPS561201DDCT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 1A TSOT23-6
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 4,897
Can ship immediately
Pricing:
- 1$0.72
- 250$0.5566
- 500$0.49336
- 1,250$0.39215
Quote It
Technical Details
- Series:SWIFT™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):17V
- Voltage - Output (Min/Fixed):0.76V
- Voltage - Output (Max):7V
- Current - Output:1A
- Frequency - Switching:580kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package:TSOT-23-6
