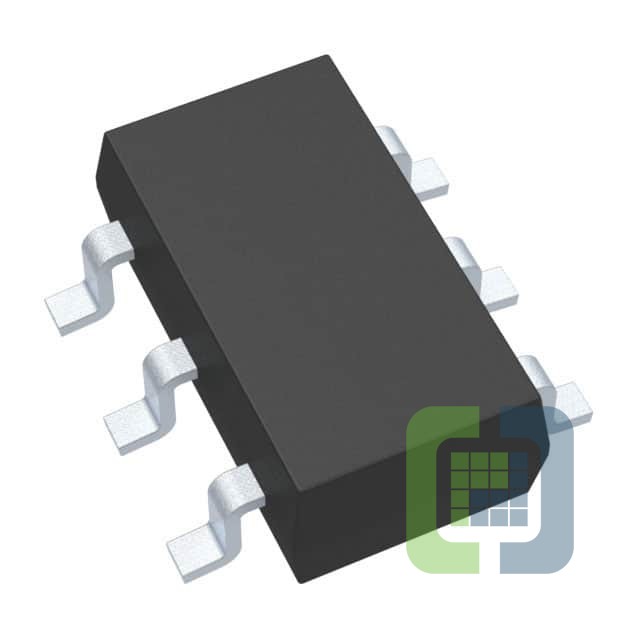

MAX1697TEUT+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARG PUMP INV 60MA SOT23
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX1697TEUT+T Datasheet
-
ECAD Model
- Share
In Stock: 3,366
Can ship immediately
Pricing:
- 1$2.15
- 2,500$1.1745
- 5,000$1.131
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Positive or Negative
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):1.6V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):-Vin, 2Vin
- Voltage - Output (Max):-
- Current - Output:60mA
- Frequency - Switching:60kHz ~ 200kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-6
- Supplier Device Package:SOT-23-6
