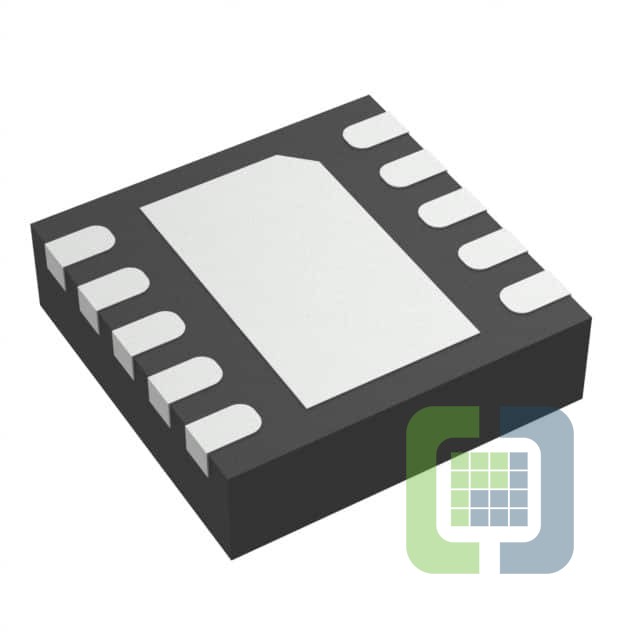

TPS54060ADRCR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK SPLIT RAIL ADJ 10VSON
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 15,844
Can ship immediately
Pricing:
- 1$2.84
- 3,000$1.34596
- 6,000$1.29536
Quote It
Technical Details
- Series:SWIFT™, Eco-Mode™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck, Split Rail
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3.5V
- Voltage - Input (Max):60V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):58V
- Current - Output:500mA
- Frequency - Switching:100kHz ~ 2.5MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-VSON (3x3)
