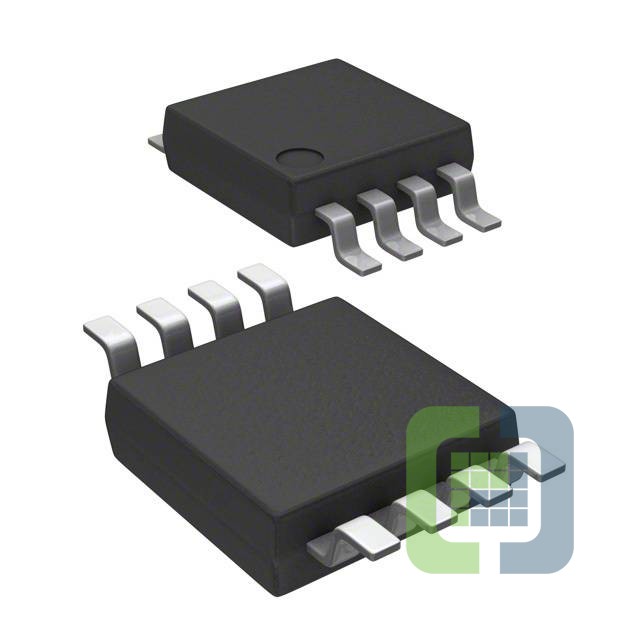

ICL7660CUA+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARG PUMP INV 20MA 8UMAX
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet ICL7660CUA+ Datasheet
-
ECAD Model
- Share
In Stock: 2,024,419
Can ship immediately
Pricing:
- 1$2.27
- 10$2.04132
- 50$1.9295
- 100$1.67223
- 250$1.58648
- 500$1.42354
- 1,000$1.20058
- 2,500$1.14055
- 5,000$1.09767
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Positive or Negative
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):1.5V
- Voltage - Input (Max):10V
- Voltage - Output (Min/Fixed):-Vin, nVin, Vin/2
- Voltage - Output (Max):-
- Current - Output:20mA
- Frequency - Switching:10kHz
- Synchronous Rectifier:No
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-uMAX
