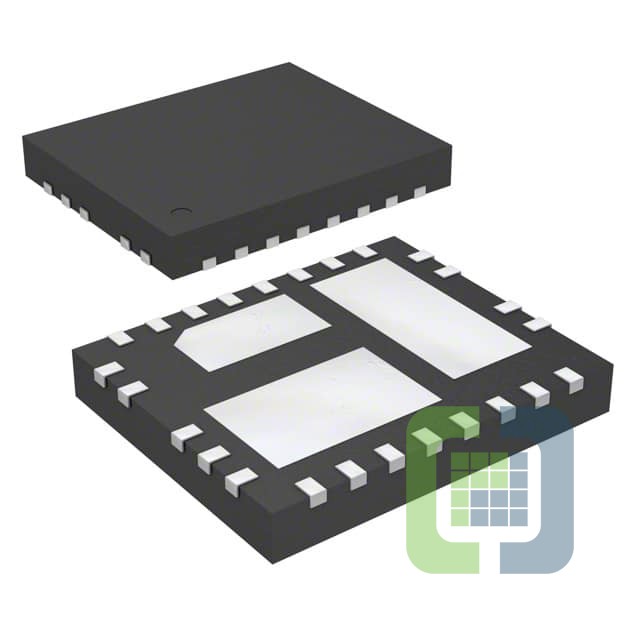

FAN2106MPX
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 6A 25MLP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet FAN2106MPX Datasheet
-
ECAD Model
- Share
In Stock: 3,184
Can ship immediately
Pricing:
- 1$4.63
- 3,000$2.19251
Quote It
Technical Details
- Series:TinyBuck®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3V
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):19.2V
- Current - Output:6A
- Frequency - Switching:200kHz ~ 600kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-10°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:25-WQFN Exposed Pad
- Supplier Device Package:25-MLP (6x5)
