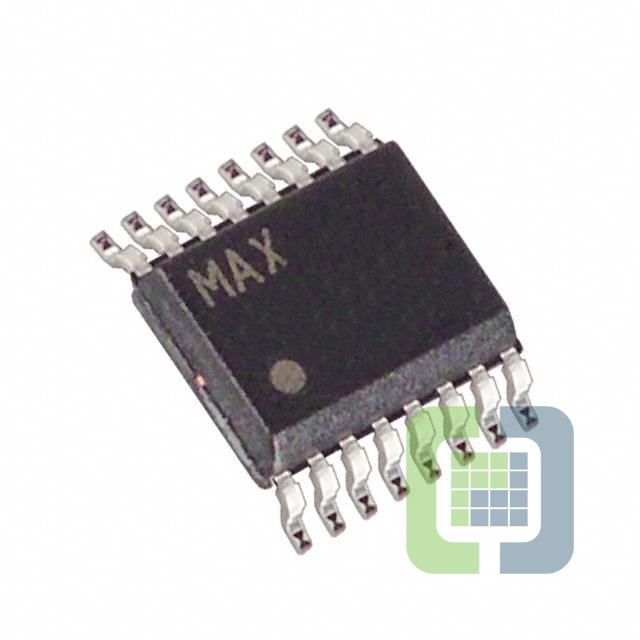

MAX864EEE+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CHARGE PUMP INV 16QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX864EEE+ Datasheet
-
ECAD Model
- Share
In Stock: 1,454,574
Can ship immediately
Pricing:
- 1$3.41
- 10$3.06563
- 25$2.89842
- 100$2.51203
- 300$2.38321
- 500$2.13845
- 1,000$1.80351
- 2,500$1.71334
- 5,000$1.64892
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Ratiometric
- Output Configuration:Positive or Negative
- Topology:Charge Pump
- Output Type:Fixed
- Number of Outputs:2
- Voltage - Input (Min):1.75V
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):-Vin, 2Vin
- Voltage - Output (Max):-
- Current - Output:35mA
- Frequency - Switching:185kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:16-QSOP
