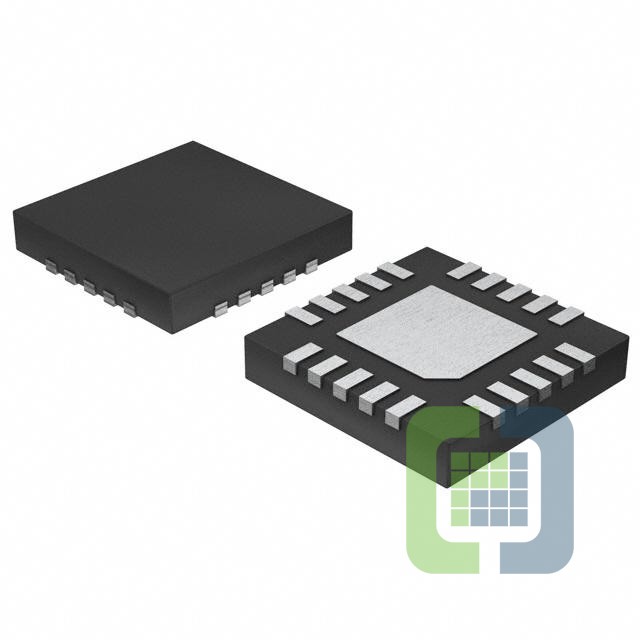

MAX17503SATP+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 2.5A 20TQFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX17503SATP+ Datasheet
-
ECAD Model
- Share
In Stock: 880,599
Can ship immediately
Pricing:
- 1$3.84
- 10$3.44758
- 75$3.25895
- 150$2.82442
- 300$2.67958
- 525$2.40438
- 1,050$2.02779
- 2,550$1.9264
Quote It
Technical Details
- Series:Himalaya
- Package:Tray
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):60V
- Voltage - Output (Min/Fixed):0.9V
- Voltage - Output (Max):54V
- Current - Output:2.5A
- Frequency - Switching:100kHz ~ 2.2MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-WFQFN Exposed Pad
- Supplier Device Package:20-TQFN (4x4)
