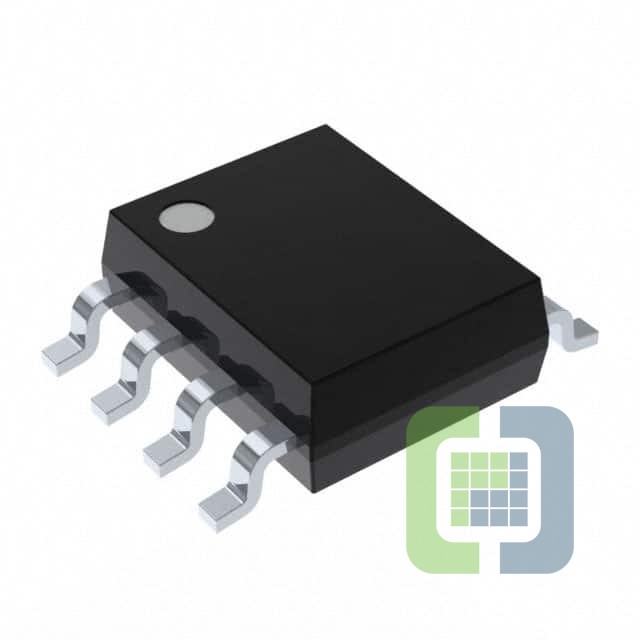

MAX735CSA+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK BST -5V 275MA 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX735CSA+ Datasheet
-
ECAD Model
- Share
In Stock: 400,955
Can ship immediately
Pricing:
- 1$4.3
- 10$3.86495
- 25$3.65407
- 100$3.16694
- 300$3.00453
- 500$2.69596
- 1,000$2.2737
- 2,500$2.16001
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Up/Step-Down
- Output Configuration:Negative
- Topology:Buck-Boost
- Output Type:Fixed
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):6.2V
- Voltage - Output (Min/Fixed):-5V
- Voltage - Output (Max):-
- Current - Output:275mA
- Frequency - Switching:160kHz
- Synchronous Rectifier:No
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
