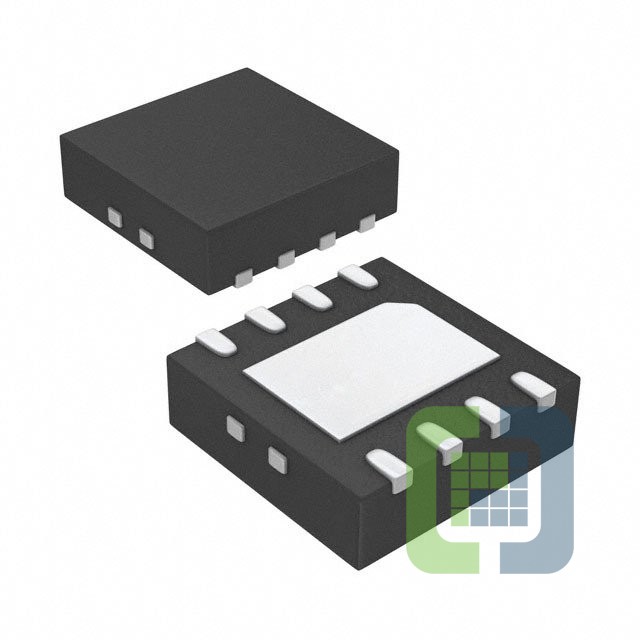

LTC3561AIDD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 1A 8DFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3561AIDD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 1,460
Can ship immediately
Pricing:
- 1$5.37
- 25$3.56603
- 100$2.94853
- 250$2.80113
- 500$2.73793
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):2.5V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5V
- Current - Output:1A
- Frequency - Switching:2.5MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-WFDFN Exposed Pad
- Supplier Device Package:8-DFN (3x3)
