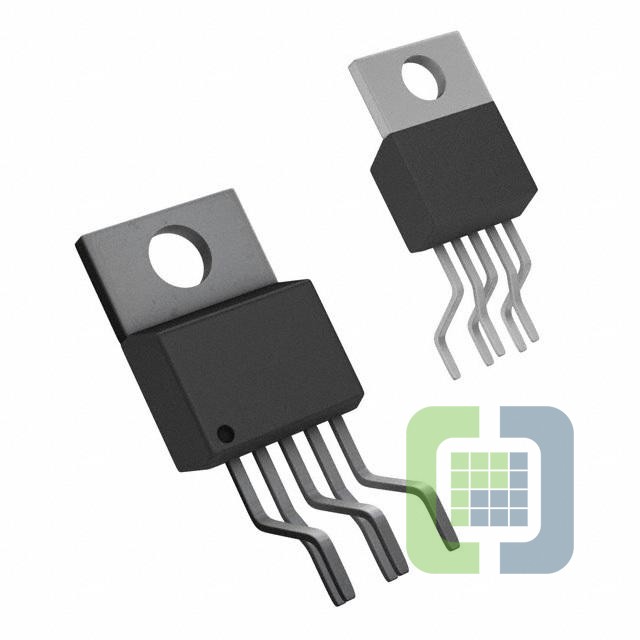

LM2596T-ADJ
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 3A TO220-5
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 659
Can ship immediately
Pricing:
- 1$6.23
- 10$5.59323
- 45$5.28749
- 135$4.58256
- 540$3.90105
- 1,035$3.29003
- 2,520$3.12553
Quote It
Technical Details
- Series:SIMPLE SWITCHER®
- Package:Tube
- Part Status:Not For New Designs
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):37V
- Current - Output:3A
- Frequency - Switching:150kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Through Hole
- Package / Case:TO-220-5 Formed Leads
- Supplier Device Package:TO-220-5
