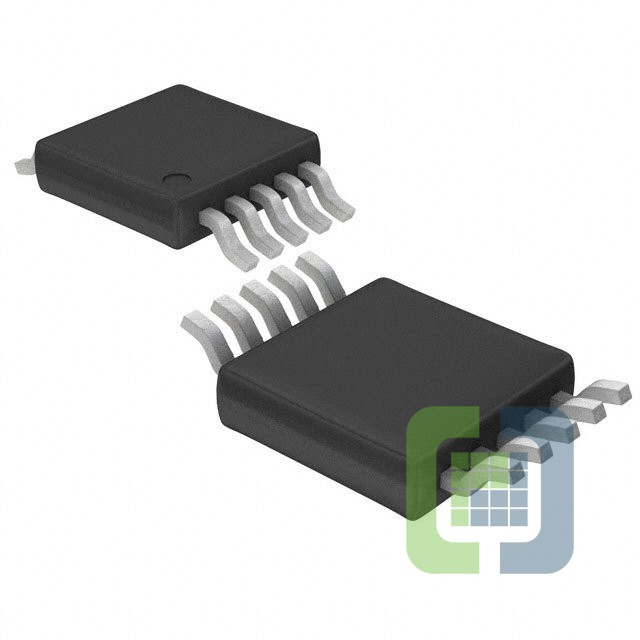

LT3502AIMS#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 500MA 10MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LT3502AIMS#PBF Datasheet
-
ECAD Model
- Share
In Stock: 1,303
Can ship immediately
Pricing:
- 1$6.57
- 25$4.36019
- 100$3.60525
- 250$3.42498
- 500$3.34773
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):3V
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):32V
- Current - Output:500mA
- Frequency - Switching:2.25MHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10-MSOP
