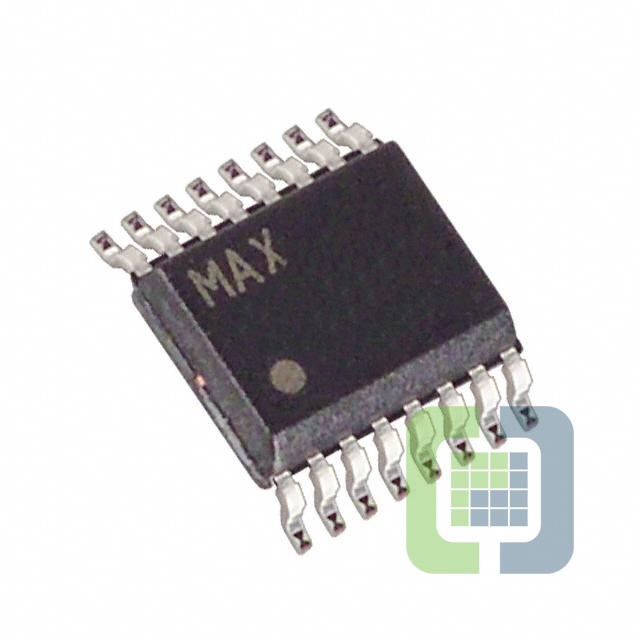

MAX685EEE+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BOOST ADJ 440MA DL 16QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet MAX685EEE+ Datasheet
-
ECAD Model
- Share
In Stock: 14,600
Can ship immediately
Pricing:
- 1$6.72
- 10$6.06816
- 25$5.78592
- 100$5.02387
- 300$4.79808
- 500$4.37472
- 1,000$3.81024
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Up
- Output Configuration:Positive and Negative (Dual Rail)
- Topology:Boost
- Output Type:Adjustable
- Number of Outputs:2
- Voltage - Input (Min):2.7V
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):-1.27V, 2.7V
- Voltage - Output (Max):24V, -9V
- Current - Output:440mA (Switch)
- Frequency - Switching:220kHz, 400kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:16-QSOP
