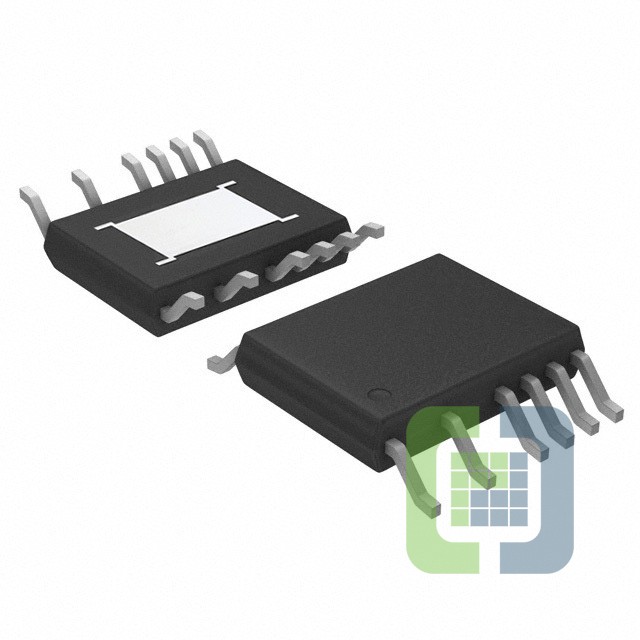

LTC3630AEMSE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BCK ADJ/PROG 500MA 16MSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
- Datasheet LTC3630AEMSE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 593
Can ship immediately
Pricing:
- 1$7.92
- 25$5.25706
- 100$4.34661
- 250$4.12928
- 500$4.03614
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive or Negative
- Topology:Buck
- Output Type:Adjustable (Programmable)
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):76V
- Voltage - Output (Min/Fixed):0.8V (1.8V, 3.3V, 5V)
- Voltage - Output (Max):76V
- Current - Output:500mA
- Frequency - Switching:-
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad
- Supplier Device Package:16-MSOP-EP
