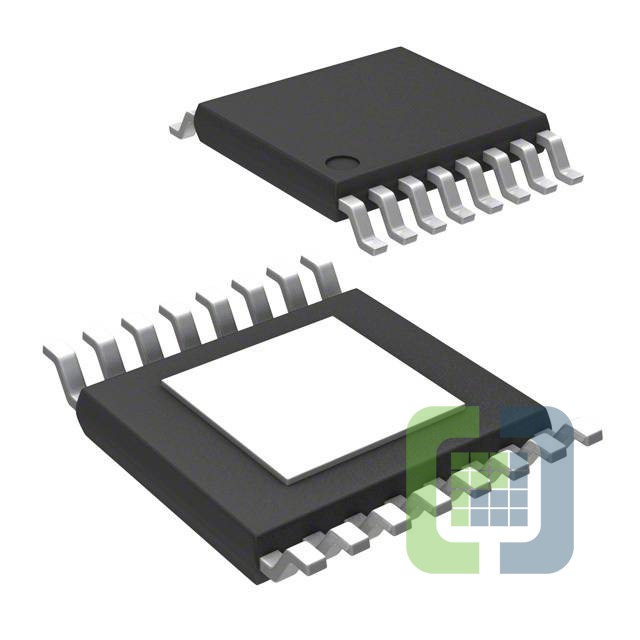

TPS54394PWP
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 3A DL 16HTSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 308
Can ship immediately
Pricing:
- 1$3.26
- 10$2.92527
- 90$2.76594
- 180$2.39714
- 540$2.04062
- 1,080$1.72101
- 2,520$1.63496
- 5,040$1.57349
Quote It
Technical Details
- Series:D-CAP2™, Eco-Mode™
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:2
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):0.76V
- Voltage - Output (Max):7V
- Current - Output:3A
- Frequency - Switching:700kHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-PowerTSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-HTSSOP
