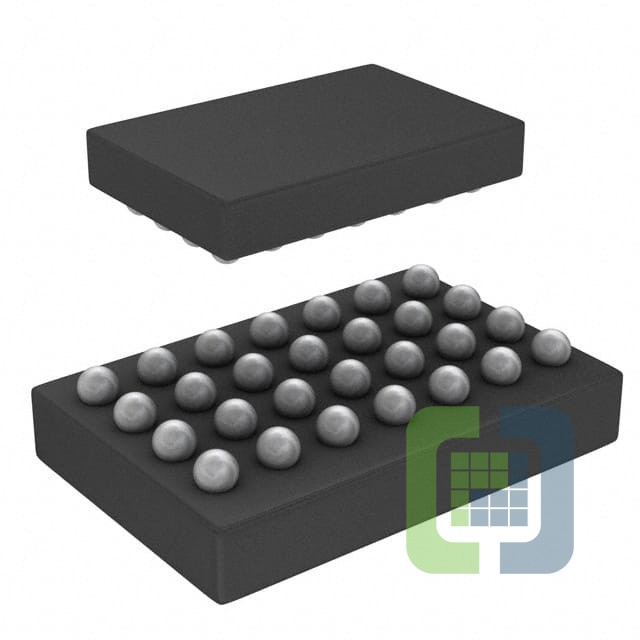

LMR24220TL/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 2A 28USMD
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 2,854
Can ship immediately
Pricing:
- 1$5.69
- 250$3.7444
- 500$3.35984
- 1,250$2.8336
Quote It
Technical Details
- Series:SIMPLE SWITCHER®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):42V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):24V
- Current - Output:2A
- Frequency - Switching:Up to 1MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-WFBGA
- Supplier Device Package:28-uSMD
