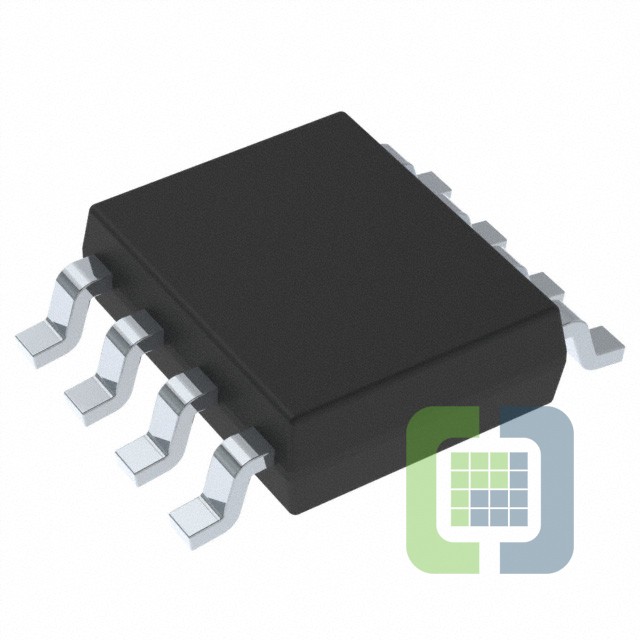

LMR23630AQDDAQ1
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 3A 8SOPWR
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 801
Can ship immediately
Pricing:
- 1$4.78
- 10$4.29265
- 75$4.06314
- 150$3.53304
- 525$3.02076
- 1,050$2.56146
- 2,550$2.4378
Quote It
Technical Details
- Series:Automotive, AEC-Q100, SIMPLE SWITCHER®
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4V
- Voltage - Input (Max):36V
- Voltage - Output (Min/Fixed):1V
- Voltage - Output (Max):28V
- Current - Output:3A
- Frequency - Switching:150kHz ~ 2.425MHz
- Synchronous Rectifier:Yes
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-PowerSOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SO PowerPad
