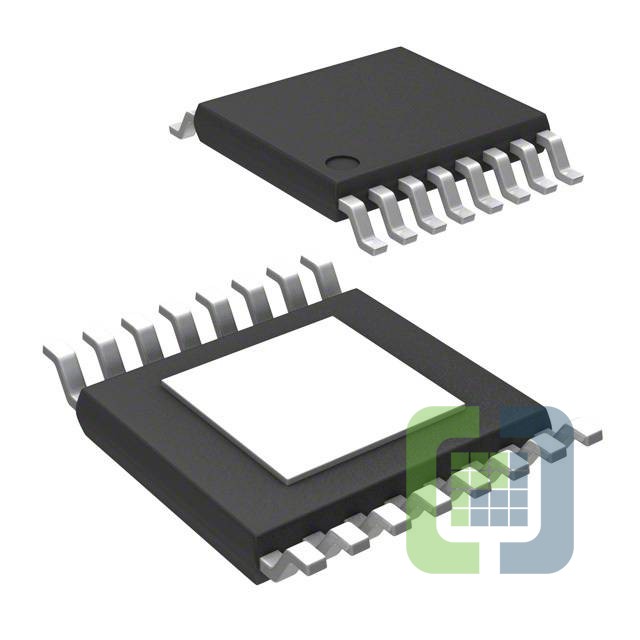

LM2696MXA/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJ 3A 16HTSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 330
Can ship immediately
Pricing:
- 1$5.04
- 10$4.52329
- 92$4.27638
- 184$3.70617
- 552$3.15497
- 1,012$2.66082
- 2,576$2.52778
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):1.254V
- Voltage - Output (Max):20V
- Current - Output:3A
- Frequency - Switching:100kHz ~ 500kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-PowerTSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-HTSSOP
