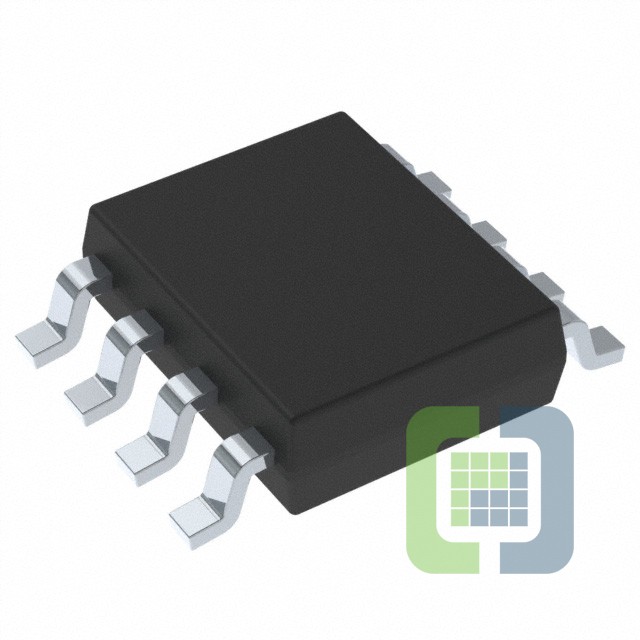

LM22680QMR-ADJ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG BUCK ADJUSTABLE 2A 8SOPWR
- CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
-
ECAD Model
- Share
In Stock: 13,094,484
Can ship immediately
Pricing:
- 1$5.38
- 10$4.83669
- 95$4.57219
- 190$3.96259
- 570$3.37326
- 1,045$2.84493
- 2,565$2.70268
Quote It
Technical Details
- Series:Automotive, AEC-Q100, SIMPLE SWITCHER®
- Package:Tube
- Part Status:Active
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Output Type:Adjustable
- Number of Outputs:1
- Voltage - Input (Min):4.5V
- Voltage - Input (Max):42V
- Voltage - Output (Min/Fixed):1.285V
- Voltage - Output (Max):37V
- Current - Output:2A
- Frequency - Switching:500kHz
- Synchronous Rectifier:No
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-PowerSOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SO PowerPad
